Driller Clivio Rap 0

Driller Clivio Rap 0

Contact us for price

Description

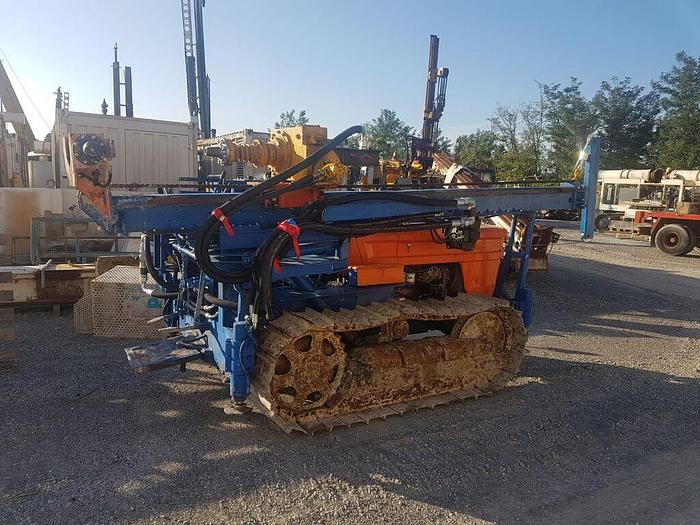

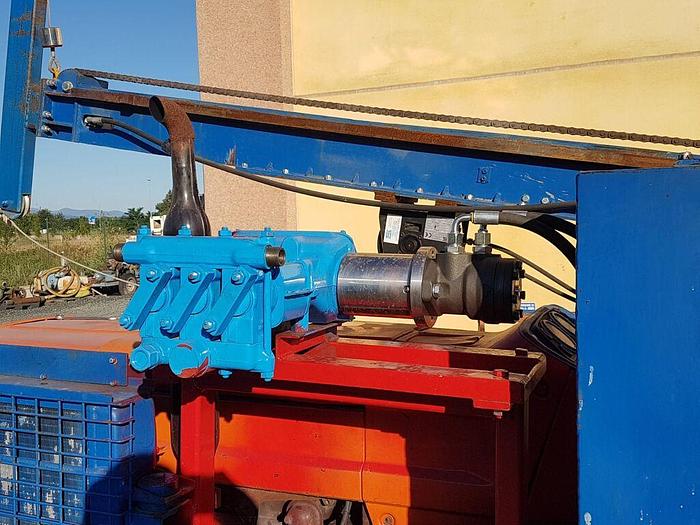

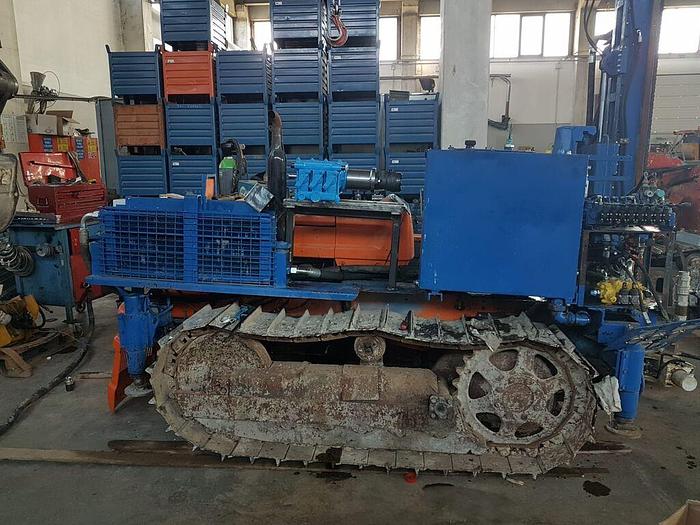

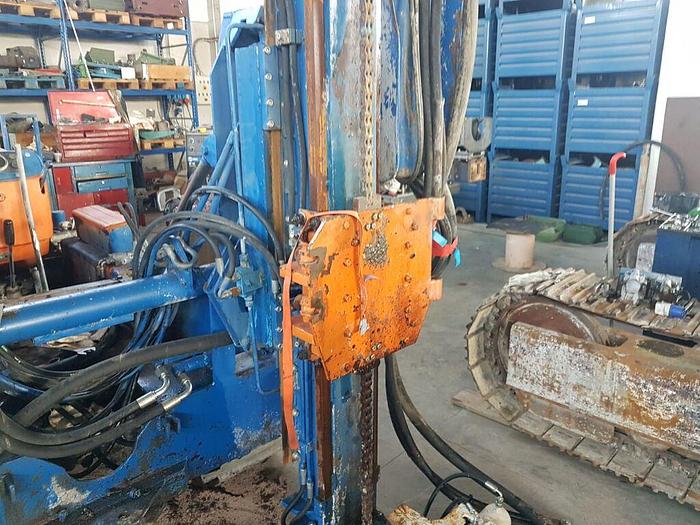

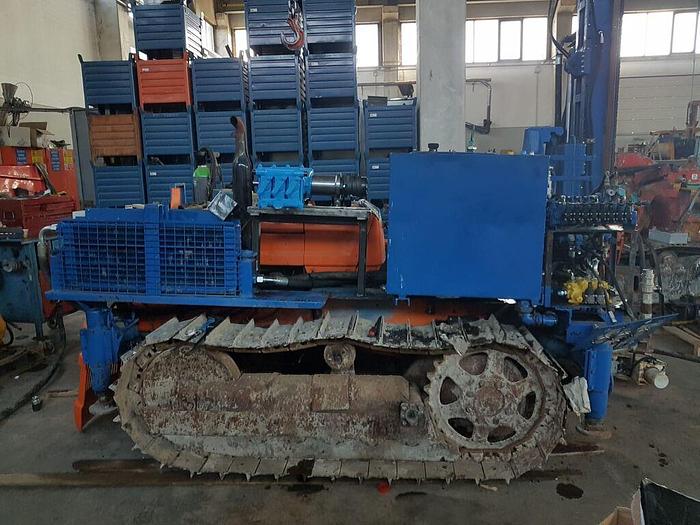

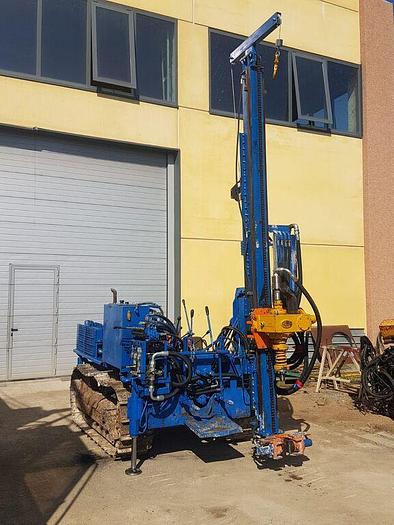

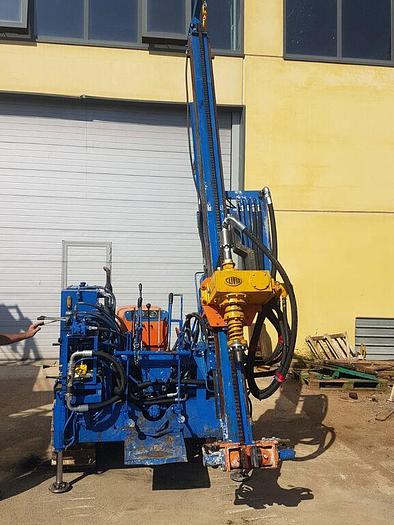

No. 1 drilling rig, make Clivio, model Rap 0 installed on crawler tractor Fiat 3 cylinders power 45 hp. Tractor model 455C.. Crawler base with mechanical transmission and able to travel long distances without problem Feed travel fitted for 3 mt long drill rods (effective feed travel 3300 mm) Max pull back force: 2500 kg Rotary head make Clivio model Rap 0; max torque 380 kgm. 4-speeds. Max speed up to 450 rpm. Floating spindle and top mounted air/water/mud swivel. Double clamp with max passage 200 mm- minimum diameter 50 mm. Large oil cooling system 4 outriggers to level the rig Drilling control panel on the back side of the rig Triplex soil investigation pump: max delivery 80 lt/1', pressure up to 40 bar Drilling rig recently maintained and currently in excellent general conditions Immediately available Visible at our workshop Price on request

Specifications

ManufacturerCLIVIO
ModelRAP 0
ConditionRefurbished
Stock NumberWY22498
Guydrilling rig
