SM 5

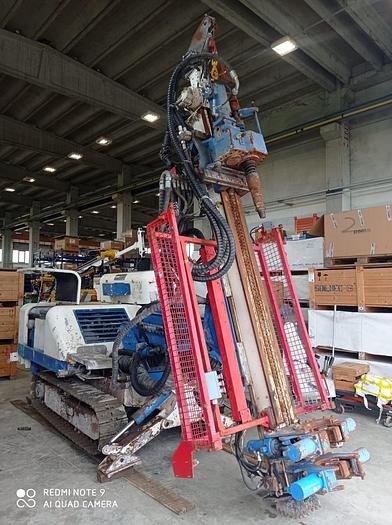

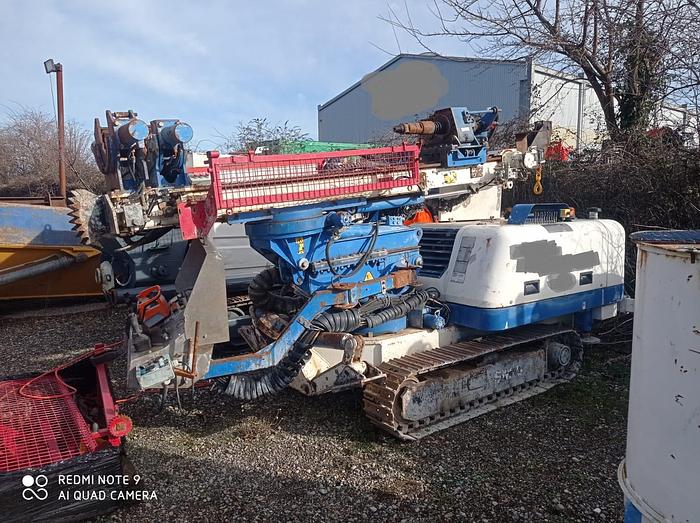

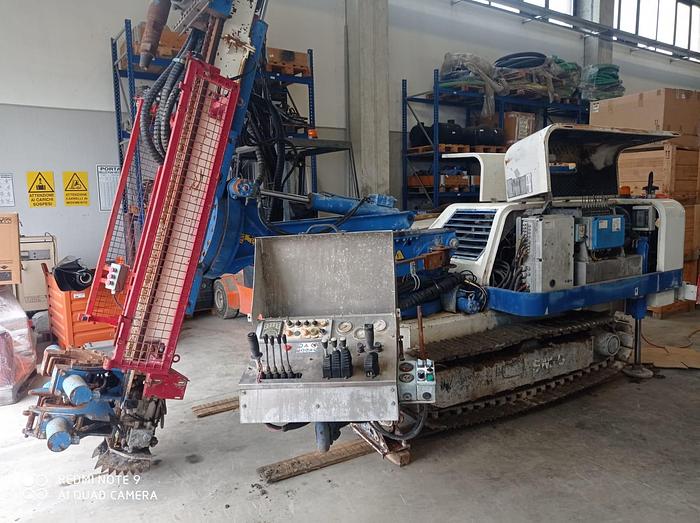

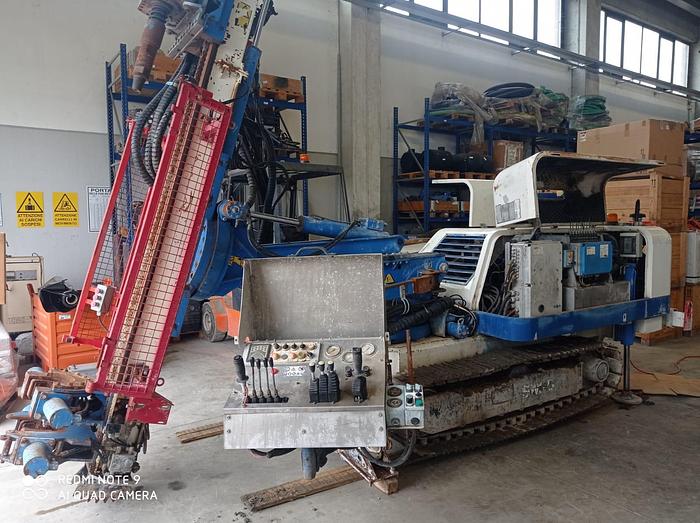

N°1 drilling rig, make Soilmec, model SM5

Year of manufacture: 2015

Engine running hours: 2300 approx

Diesel engine: Deutz, power 100 hp @ 2300 rpm

Feed travel 2400 mm for 2 m long drill rods

Max pull back force: 4 tons

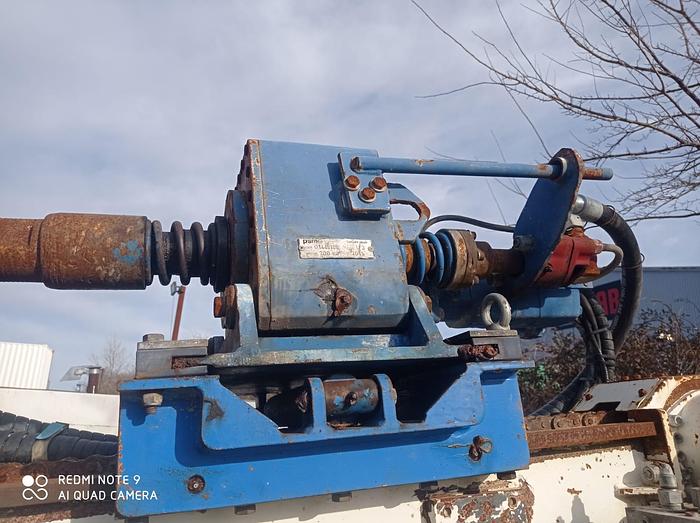

Rotary head with two mechanical speeds.

Max torque 580 kg x m @82 rpm

Max speed up to 311 rpm

Double clamp with max passage 220 mm

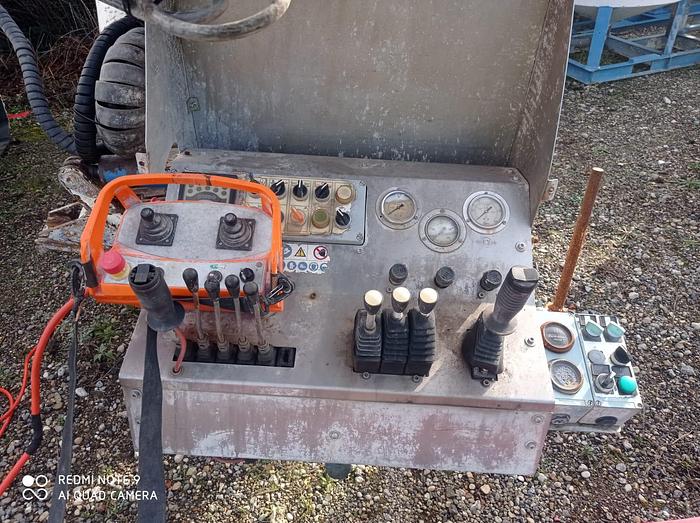

Drilling control panel on articulated arm

positioning control panel on board

crawler control panel with distance cable

Winches

On board oiler

Safety cage

motorized slewing ring at the base of the mast

Motorized slewing ring on the mast

Zoom in on the main boom

Class weight: 6 tons

General conditions: very good

Currently under general maintenance service
