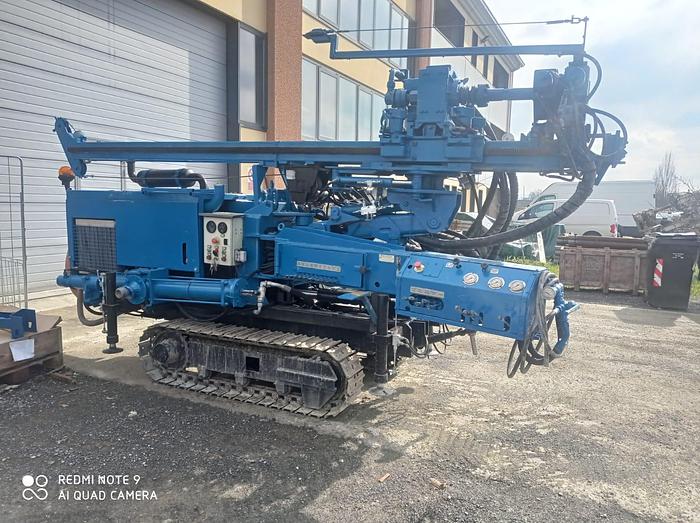

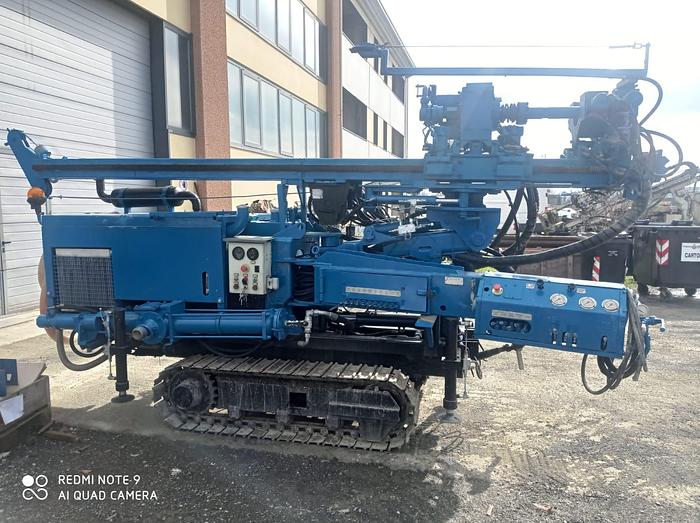

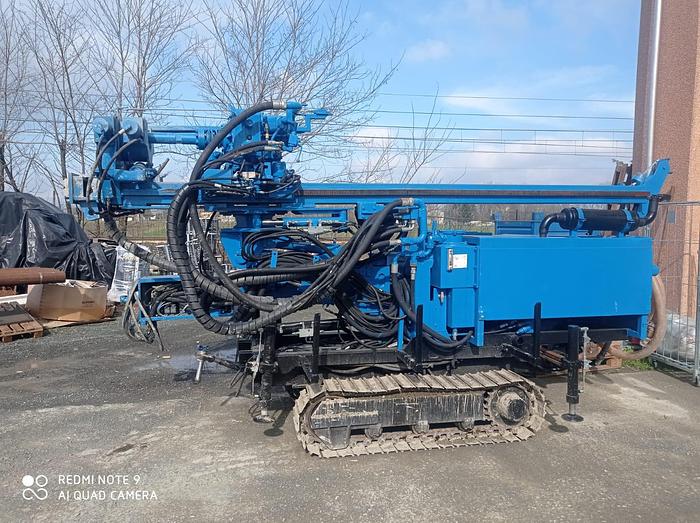

Ellettari Ek 200B with screw pump

N°1 drilling rig, make Ellettari, model Ek 200B complete with screw pump installed on board.

Diesel engine make VM, model D704 LT, 4 cylinder, turbo charged, water--cooled, power 83 hp

Feed travel fitted for 3 mt long drill rods

max pull back force: 4400 kg

Rotary head with max torque 750 kgm; 5 mechanical speeds.

Max speed in 5th speed: 480 rpm

Floating spindle with inner passage 40 mm

Double clamp with max passage 260 mm

Winch

Screw pump make CMO with max delivery 300 lt/1' approx

Foam pump/clear water pump: max delivery 80 lt/1', pressure up to 50 bar

Drilling control panel on board

crawler control panel with distance control cable

General conditions: very good

In ready-to-work conditions.

Visoble at our workshop.
